Automobile Motor Needle Roller Bearing HK283410 28X34X10 188068 29.536.513. 5MM

Name: Automobile Motor Needle Roller Bearing HK283410 28X34X10 188068 29536513 5MM
Brand: OTOTRI
Price: 0.5 USD

Brand Name : OTOTRI

Model Number : HK2834

Place of Origin : China

Payment Terms : L/C, D/A, D/P, Western Union, T/T, MoneyGram

Delivery Time : 3-5 work days

Packaging Details : carbon box

MOQ : 100

Price : 0.5-5 USD

Contact Now

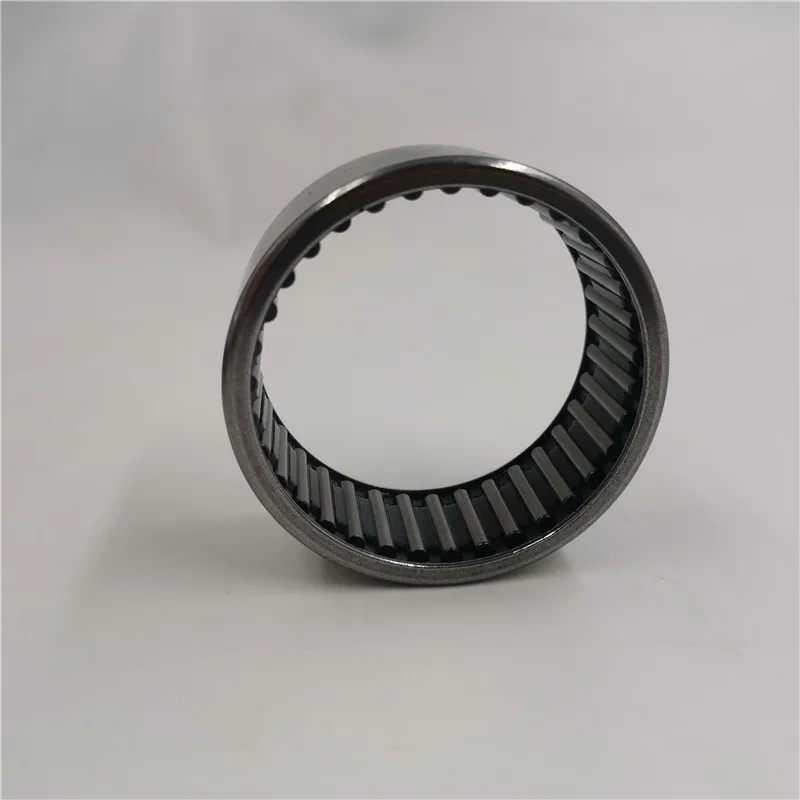

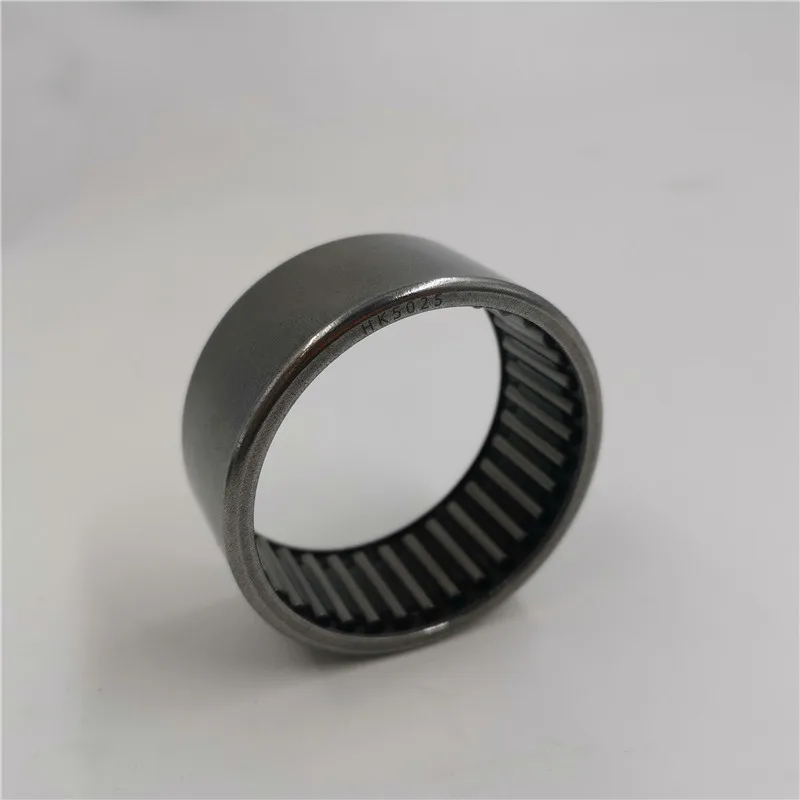

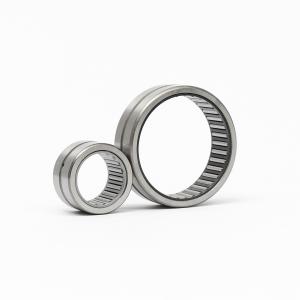

Automobile motor needle roller bearing HK283410 28X34X10 188068 29.5*36.5*13. 5MM

Needle roller bearing

1.Bearing Specifications :
Needle roller bearings use long, thin cylindrical rollers to support radial loads. These needle rollers have a length that is
typically three to four times its diameter. Needle roller bearings have a thinner cross section than other roller bearings and are ideal for limited-space applications that require carrying heavy loads. Drawn cup needle roller bearings have a deeply drawn, thin-walled outer ring. Caged drawn cup units contain a one-piece cage to guide and retain the rollers. Full-complement drawn cup units include the maximum number of rollers that can be retained by the outer shell. The drawn design allows for cost-effective accommodation of heavy radial loads. Needle roller and cage assemblies do not contain inner or outer rings. Instead, the self-contained bearing components work with a shaft or housing bore used as a raceway.

2.Application of Bearing :
1.Needle roller bearing: used in automobile engine, transmission, crawler wheel of excavator, compressor, crane, etc.2.Combined needle roller bearing is widely used in machine tools, metallurgical machinery, textile machinery, printing machinery and other mechanical equipment, and can make the mechanical system design very compact and smart.

3.CROWNTRANS Bearing Features :
Lower cross-section height and higher load capacity than traditional ball bearings.
Small and compact for reduced overall machine size in light weighting efforts.
Widely used in automobiles, motorcycles, printing presses, industrial robots, construction equipment and other demanding
applications.
Many styles to choose from including: radial, thrust and combined models, cam followers and roller followers..

P/N	Factory Price Factory Direct Price Needle Roller Bearing HK0306 HK0408 HK0509 HK0608 HK0609 HK series
Brand	OEM
Precision	ABEC-1
Type	Needle Roller Bearings
Material	Chrome Steel
Package	Plastic Bag and Box
Payment Item	T/T ,Western Union , Paypal ,Credit card
Delivery time	3-10day

Automobile Motor Needle Roller Bearing HK283410 28X34X10 188068 29.5*36.5*13. 5MM

Size Information

Shaft (mm)	Designation		Mass Approx	Boundary Dimensions			Basic Load Rating
	Current Code	Original Code		Fw	D	C	Dynamic	Static
	Current Code	Original Code	g	mm			N
3	HK0306TN			3	6.5	6	1320	950
	BK0306TN			3	6.5	6	1320	950
4	HK0408TN	37941/4	1.6	4	8	8	1540	1070
	BK0408TN	5941/4	1.8	4	8	8	1540	1070
5	HK0509TN			5	11	9	2200	1790
	HK0509	47941/5	2	5	9	9	2200	1790
	BK0509	45941/5	2.1	5	9	9	2200	1790
	HK0510			5	9	10
6	HK0606			6	10	6
	HK0607	27941/6	1.8	6	10	7	1600	1400
	HK0608	37941/6	2.1	6	10	8	1830	1550
	BK0608	35941/6	2.2	6	10	8	1830	1550
	HK0609	47941/6	2.2	6	10	9	2650	2400
	BK0609	45941/6	2.6	6	10	9	2650	2400
	HK0611		2.3	6	10	11	1700	1500
	HK06X12X8	3941/6	2.5	6	12	8	2230	2010
7	HK0708			7	11	8	2800	2150
	HK0709	47941/9	2.3	7	11	9	2800	2150
	BK0709	45941/9	2.9	7	11	9	2800	2150
	HK0712			7	11	12
	HK07X12X08		2.2	7	12	8	3300	3220
	HK07X12X09		2.4	7	12	9	3400	3150
8	HK0808	37941/8	2.7	8	12	8	2550	2400
	HK0808TN			8	12	8
	BK0808	35941/8	3	8	12	8	2550	2400
	HK0810	57941/8	3	8	12	10	3700	3450
	BK0810	88941/8	3.4	8	12	10	3700	3450
	HK0812	67941/8		8	12	12
	HK08X14X10	27942/8	5.35	8	14	10	3800	3950
	BK08X14X10	25942/8	5.8	8	14	10	3800	3950
	HK08X14X12	37942/8	6.6	8	14	12	4100	4320
9	HK0908	37941/9	3	9	13	8	3650	4050
	BK0908	35941/9	3.4	9	13	8	3650	4050
	HK0910	57941/9	4	9	13	10	4050	4250
	BK0910	55941/9	4.3	9	13	10	4050	4250
	HK0911		4.1	9	13	11	4300	4700
	HK0912	67941/9	4.6	9	13	12	5000	6000
	BK0912	65941/9	4.9	9	13	12	5000	6000
	HK09X15X10	27942/9	5.6	9	15	10	5300	6300
